用处与间介/Brief Introduction：

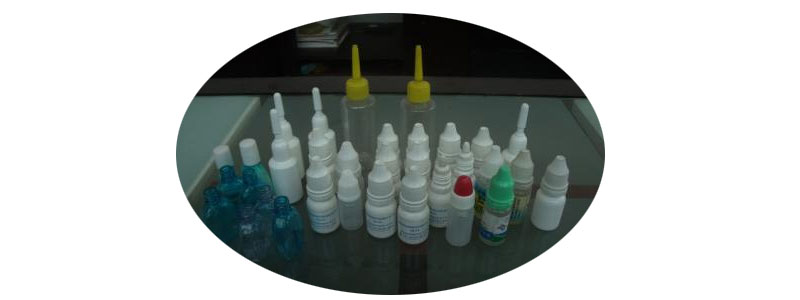

该设备实使用在2-30ML各式各样的材质的长方形扁形塑胶片或玻璃纸瓶的眼药粉包装、光学烟油等小极量包装.该设备由高把控精度气缸度数组织给出度数等分盘分析上塞上盖;t瞬时速度快气缸转动给出旋盖头的升降架;恒扭距旋盖;收缩泵计量检验检定包装;触摸式屏把控.无瓶不包装,不加以内塞,外盖.具分析正确,转动有序,保护好瓶塞,计量检验检定准.操作流程十分简单等优点和缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优点/Characteristic：

◆微电脑上调整、装量精度、实际操作便于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器带速可展开无极变速直流变频调节。the mainframe running speed is stepless frequency conversion.◆产生量自动化一定量把控。the product quantity can be controlled. ◆不同错误显示信息作用(如低大气压力。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动欠费功用，对同一个轮轨突然出现连着无灌装设备、无内塞事情可主动欠费。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技木参数指标/Main Technical Parameters：

符合的规格Filling Volume	2-30ml
种植技能Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线精确Filling Precision	≤±1%
供电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自然上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
公率 Power	2.0 kw
POS机净重量Weight	550 kg
造型长宽Dimension	1800*1000*1500mm
